| Part Number | Tube Connection | Valve Body | Valve Seals | |

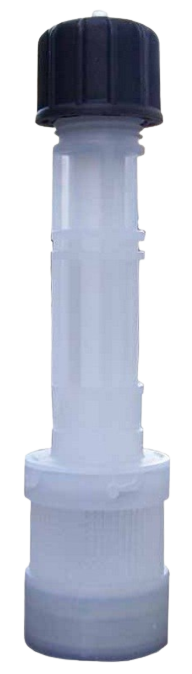

1/2 inch foot valves: | 074.0570.1 | 4 x 6 | PVDF | Viton |
| 074.0571.1 | 4 x 6 | PVDF | EPDM | |
| 074.0572.1 | 4 x 6 | PVDF | Wax | |
| 074.0666.1 | 4 x 6 | PP | EPDM | |
| 074.0686.1 | 4 x 6 | PP | Wax | |
| 074.0576.1 | 4 x 8 | PVDF | Viton | |
| 074.0596.1 | 4 x 8 | PVDF | EPDM | |
| 074.0643.1 | 4 x 8 | PVDF | Wax | |
| 074.0704.1 | 4 x 8 | PP | EPDM | |
| 074.0577.1 | 6 x 8 | PVDF | Viton | |
| 074.0597.1 | 6 x 8 | PVDF | EPDM | |
| 074.0640.1 | 6 x 8 | PVDF | Wax | |
| 074.0687.1 | 6 x 8 | PP | EPDM | |
| 074.0578.1 | 8 x 10 | PVDF | Viton | |
| 074.0598.1 | 8 x 10 | PVDF | EPDM | |
| 074.0739.1 | 8 x 10 | PVDF | Wax | |
| 074.0689.1 | 8 x 10 | PP | EPDM | |
| 074.0579.1 | 8 x 12 | PVDF | Viton | |
| 074.0599.1 | 8 x 12 | PVDF | EPDM | |
| 074.0740.1 | 8 x 12 | PVDF | Wax | |
| 074.0696.1 | 8 x 12 | PP | EPDM | |
| 074.0600.1 | 12 x 18 | PVDF | Viton | |
| 074.0601.1 | 12 x 18 | PVDF | EPDM | |
| 074.0741.1 | 12 x 18 | PVDF | Wax | |
| 074.0705.1 | 12 x 18 | PP | EPDM | |

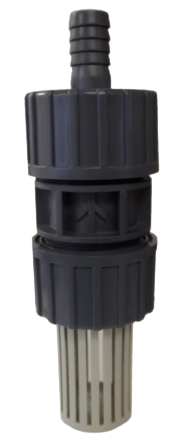

1&1/2" Foot Valve | 074.0766.1 | 13mm ID | PP | Viton |
| 074.0765.1 | 13mm ID | PP | EPDM | |
| 074.0727.1 | 18mm ID | PP | Viton | |
| 074.0728.1 | 18mm ID | PP | EPDM | |
| 074.0729.1 | 32mm ID | PP | Viton | |
| 074.0730.1 | 32mm ID | PP | Epdm |
Filter removable for cleaning, serviceable ball valve.
